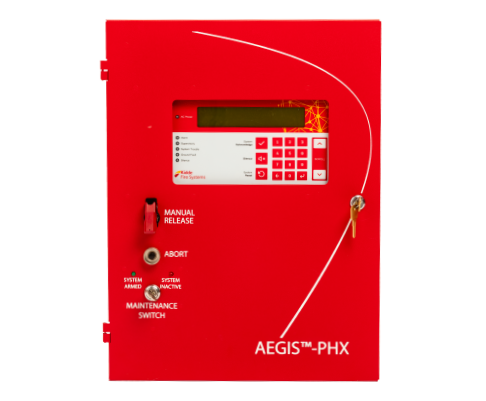

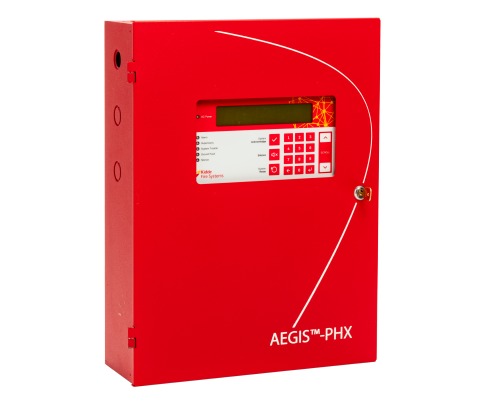

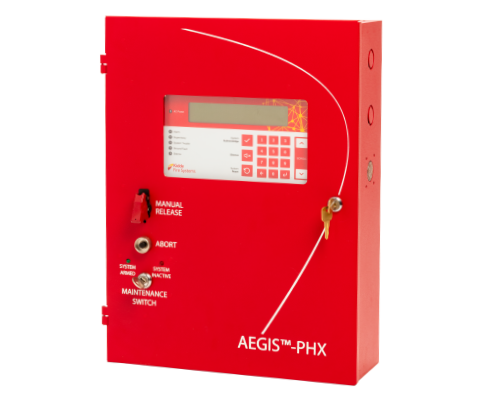

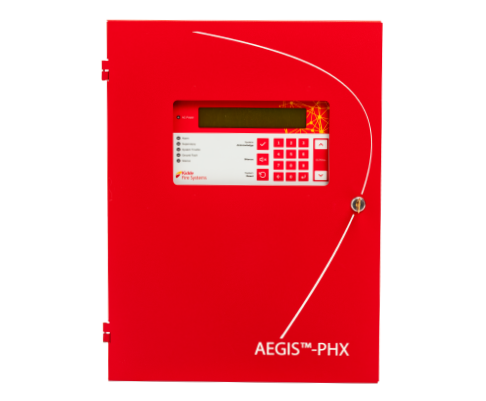

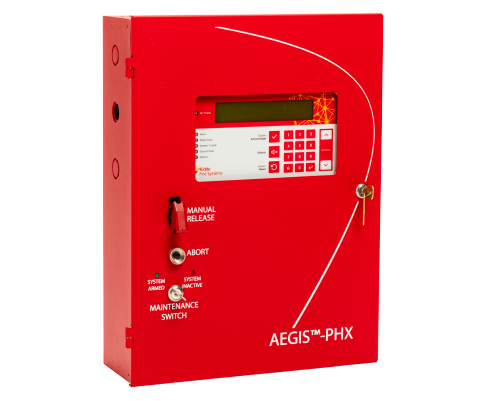

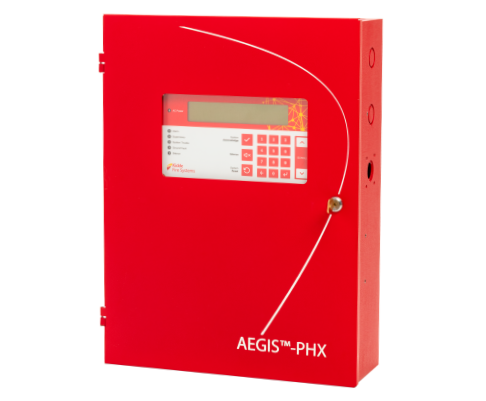

AEGIS™-PHX Conventional Fire Alarm & Suppression Control Unit
Precision Control for Any Fire Suppression Scenario
The AEGIS™-PHX Conventional Fire Alarm Suppression Control Unit brings proven reliability and modern flexibility together in one intelligent platform. Designed by KiddeFenwal for single-zone and multi-hazard suppression environments, it integrates seamlessly with clean-agent, CO₂, water-based, and specialty extinguishing systems, giving operators clear control and confidence when seconds matters.
With advanced safeguards against inadvertent discharge and flexible programming options for virtually any configuration, AEGIS™-PHX is the foundation of safety for commercial, industrial, and mission-critical facilities worldwide.
Key Advantages:
- Universal Compatibility
Fenwal Controls Gas Ignition Controls provide consistent flame sensing and relight capability across propane, natural gas, and mixed-fuel systems. - Smart, Secure Release Control
Built-in Triple-R™ redundancy eliminates risk of accidental agent discharge due to processor or power faults. - Flexible Programming
15 pre-configured operation modes and Event-Output-Control (EOC) logic for fully customized detection, notification, and release sequences.
- Backwards Compatible
Fits legacy Kidde Fire System, Fenwal Controls, and legacy Chemetron enclosures and components without replacing back boxes — making retrofits fast and cost-effective. - Remote Connectivity
Optional IntelliSite™ IoT platform for cloud-based monitoring, event logs, and proactive maintenance alerts.
Applications:
Ideal for environments that demand suppression-focused control and reliability:
- Clean agent systems protecting IT rooms or laboratories
- Industrial plants requiring coordinated multi-zone suppression
- Marine or offshore enclosures needing robust Class A/B circuitry
- Facilities upgrading from legacy Fenwal or Chemetron systems

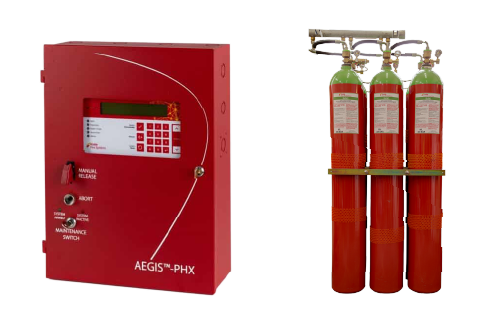

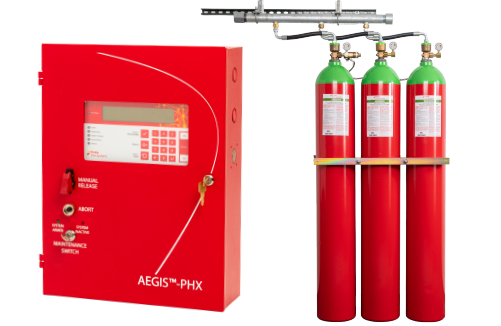

Integration Example
AEGIS™-PHX with Natura™ Inert Gas System
When paired with KiddeFenwal’s Natura™ Inert Gas System, the AEGIS™-PHX provides precise release control, event annunciation, and remote monitoring within total-flooding clean-agent applications.
The FACU supports configurable delay, abort, and manual release functions for each zone, ensuring compliance with NFPA 2001, NFPA 72, and FM 5600 standards.
System Architecture
Comprehensive Detection & Control
- Seven (7) programmable Initiating Device Circuits (IDCs) for smoke detectors, manual releases, aborts, or supervisory inputs.
- Five (5) configurable Release/Notification Appliance Circuits (R-NACs) for horns, strobes, or releasing devices.
- Four (4) Form-C relays (three programmable, one trouble) and two open-collector outputs for external relays.
- Two 24 VDC auxiliary power outputs, selectable as resettable or continuous.
User Interface
- 4-line × 40-character LCD with integrated LEDs and keypad.
- On-screen menus for setup, diagnostics, and testing.
- Audible 70 dBA buzzer and dual-level password protection.
Diagnostics & Maintenance
- Real-time clock for timestamped event logs.
- On-board Ethernet for direct configuration uploads.
- Comprehensive error reporting with IntelliSite™ compatibility.
Technical Specifications
SPECIFICATION
DETAILS
Power Input
120/240 VAC 50/60 Hz, 5.4 A PSU
Battery Capacity
Up to 70 AH @ 24 VDC
IDCs
7 Class A/B, 100 Ω max line resistance
R-NACs
5 Class A/B, 1.5 A max @ 24 VDC
Relays
3 programmable + 1 trouble, Form-C 1 A @ 30 VDC
Approvals
UL 864 10th Ed., FM, CSFM, NYC FD, UAE Civil Defense CoC, RoHS Compliant
Compliance & Certifications
- UL 864 10th Edition — Control Units and Accessories
- Factory Mutual (FM) Approved
- California State Fire Marshal (CSFM)
- NYC Fire Department COA
- UAE Civil Defense Certificate of Compliance
- CE and RoHS Directives
Ready to Modernize Your System?
Upgrade legacy Fenwal or Chemetron panels without replacing existing infrastructure.
Contact a KiddeFenwal representative to configure an AEGIS-PHX™ solution for your facility.
