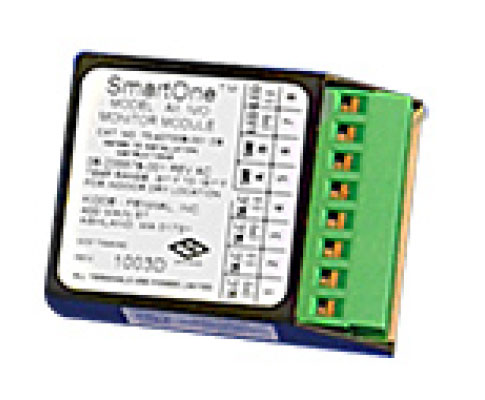

SmartOne® Addressable Input Module (AI)
Intelligent Monitoring for Addressable Fire Protection Systems
The SmartOne® Addressable Input Module (AI) provides intelligent monitoring of external contact devices within KiddeFenwal’s SmartOne® addressable architecture.
Designed for integration with ARIES-SLX® and ARIES®-MLX control units, the Addressable Input Module enables conventional initiating or supervisory devices to be incorporated into an addressable system. Each module is individually addressable and continuously monitored on the Signaling Line Circuit (SLC), providing precise device-level status reporting.
By converting dry-contact inputs into SmartOne® addressable points, the AI module enhances system visibility, simplifies troubleshooting, and supports flexible system design.
Key Advantages
- Intelligent, Addressable Monitoring
Each module has a unique SLC address, allowing the control unit to identify the exact point reporting alarm, supervisory, or trouble conditions. - Flexible Device Integration
Monitors normally open or normally closed dry-contact devices, enabling integration of a wide range of external initiating or supervisory inputs. - Continuous Panel Communication
Maintains ongoing communication with ARIES® control units for real-time status reporting and diagnostics.
- Simplified System Design
Allows conventional contact devices to operate within a SmartOne® addressable environment, reducing zone-based wiring complexity. - Seamless System Integration
Fully compatible with SmartOne® addressable detection and suppression architectures.

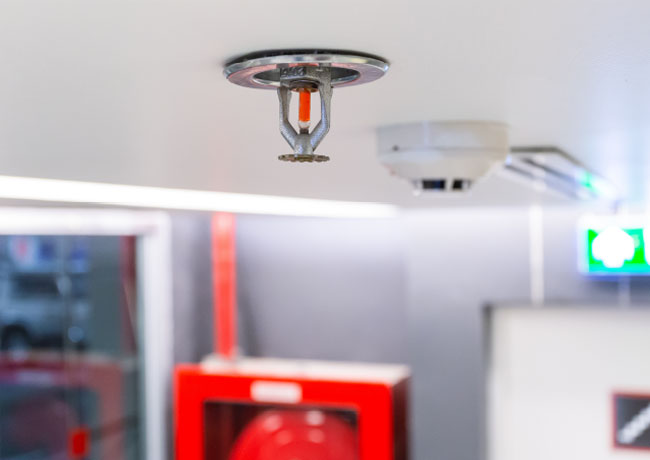

Applications
The SmartOne® Addressable Input Module is ideal for monitoring external devices within engineered fire protection systems, including:
- Waterflow switches
- Valve supervisory switches
- Pressure switches
- Manual release stations
- Auxiliary supervisory contacts
- Other dry-contact initiating devices
System Architecture
SmartOne® System Integration
Compatible Control Units
- ARIES®-SLX Intelligent Single-Loop Control Unit
- ARIES®-MLX Intelligent Multi-Loop Control Unit
System Capabilities
- Individual module addressing on the SmartOne® SLC
- Real-time alarm, supervisory, and trouble reporting
- Centralized configuration and diagnostics through the control panel
- Designed for use within engineered detection and suppression systems
Installation & System Design
- Connects directly to the SmartOne® Signaling Line Circuit
- Addressing and configuration managed through the control unit
- Designed for flexible placement near monitored devices
- Supports scalable system expansion and long-term serviceability
Technical Specifications
| SPECIFICATION | DETAILS |
|---|---|
| Device Type | Addressable input (monitor) module |
| Function | Monitors external dry-contact devices |
| Communication | SmartOne® addressable SLC |
| Addressability | Individual module identification |
| Integration | ARIES®-SLX and ARIES®-MLX control units |
| Typical Use | Supervisory and initiating input monitoring |
Compliance & System Standards
- Designed for use within UL-listed KiddeFenwal intelligent control systems
- Intended for installation in systems engineered to comply with NFPA 72 and applicable local codes, when installed per system design and AHJ requirements
Resources
SmartOne® Addressable Intelligent Detectors & Modules Overview
ARIES®-SLX Control Unit
ARIES®-MLX Control Unit
KiddeFenwal Detection & Control Systems Overview
Resource links coming soon!
Intelligent Monitoring. Clear System Insight.
The SmartOne® Addressable Input Module extends the capability of addressable fire protection systems, providing precise supervision of external devices and enhanced visibility within engineered applications.
