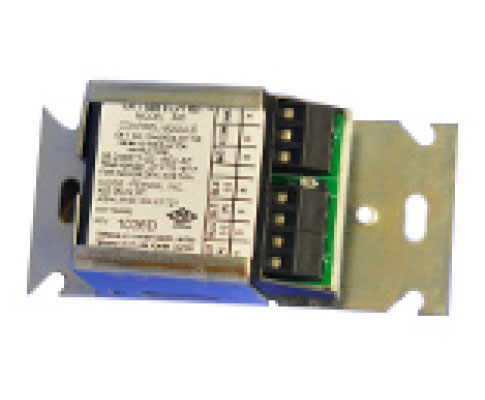

SmartOne® Addressable Relay Module
Intelligent Output Control for Addressable Fire Protection Systems
The SmartOne® Addressable Relay Module provides programmable output control within KiddeFenwal’s SmartOne® addressable architecture.
Designed for integration with ARIES®-SLX and ARIES®-MLX control units, the Addressable Relay Module enables the system to activate external equipment or auxiliary functions based on programmed alarm, supervisory, or system conditions. Each module is individually addressable and continuously monitored on the Signaling Line Circuit (SLC), providing clear status visibility and coordinated response.
By incorporating relay-based output control into the SmartOne® architecture, the module supports flexible system design and precise execution of engineered fire protection strategies.
Key Advantages
- Intelligent, Addressable Output Control
Each module has a unique SLC address, allowing the control unit to identify and supervise individual output points. - Programmable System Response
Enables activation of external devices based on configured alarm or system logic. - Continuous Panel Communication
Maintains ongoing communication with ARIES™ control units for real-time status reporting and diagnostics.
- Flexible Equipment Integration
Supports interfacing with auxiliary systems and equipment within engineered fire protection designs. - Seamless System Integration
Fully compatible with SmartOne® addressable detection and suppression architectures.

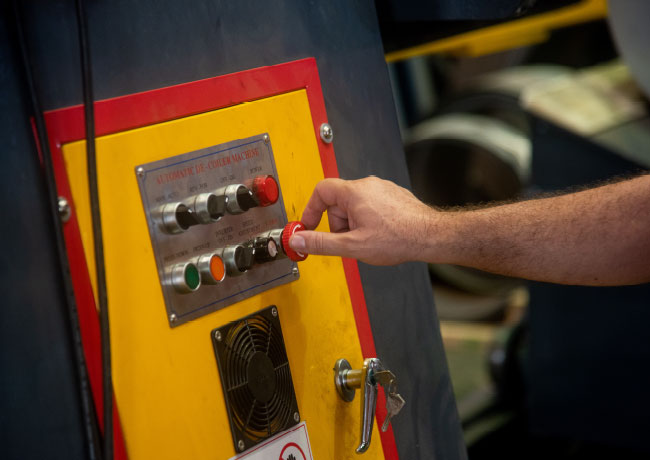

Applications
The SmartOne® Addressable Relay Module is ideal for controlling external devices within engineered fire protection systems, including:
- Equipment shutdown or startup controls
- HVAC or ventilation interface
- Door release mechanisms
- Auxiliary signaling devices
- System interlocks and control functions
System Architecture
SmartOne® System Integration
Compatible Control Units
- ARIES®-SLX Intelligent Single-Loop Control Unit
- ARIES®-MLX Intelligent Multi-Loop Control Unit
System Capabilities
- Individual module addressing on the SmartOne® SLC
- Programmable activation logic
- Real-time status and trouble reporting
- Centralized configuration and diagnostics through the control panel
- Designed for use within engineered detection and suppression systems
Installation & System Design
- Connects directly to the SmartOne® Signaling Line Circuit
- Addressing and configuration managed through the control unit
- Designed for placement near controlled equipment to optimize wiring
- Supports scalable system expansion and long-term serviceability
Technical Specifications
| SPECIFICATION | DETAILS |
|---|---|
| Device Type | Addressable relay module |
| Function | Provides programmable relay output |
| Communication | SmartOne® addressable SLC |
| Addressability | Individual module identification |
| Integration | ARIES ®-SLX and ARIES®-MLX control units |
| Typical Use | Equipment control and auxiliary interface |
Compliance & System Standards
- Designed for use within UL-listed KiddeFenwal intelligent control systems
- Intended for installation in systems engineered to comply with NFPA 72 and applicable local codes, when installed per system design and AHJ requirements
Resources
Resource links coming soon!
Intelligent Control. Coordinated Response.
The SmartOne® Addressable Relay Module extends the capability of addressable fire protection systems, enabling precise, programmable control of external equipment within engineered applications.
