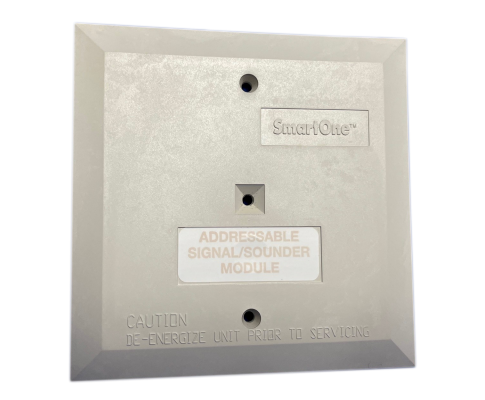

SmartOne® Addressable Signal Module (ASM)
Intelligent Signaling Integration for Addressable Fire Protection Systems
The SmartOne® Addressable Signal Module (ASM) provides intelligent control and supervision of notification and auxiliary signaling devices within KiddeFenwal’s SmartOne® addressable architecture.
Designed for integration with ARIES®-SLX and ARIES®-MLX control units, the Addressable Signal Module enables coordinated activation of signaling circuits in response to alarm or system events. Each module is individually addressable and continuously monitored on the Signaling Line Circuit (SLC), providing precise device-level visibility and system supervision.
By incorporating signaling control into the SmartOne® architecture, the ASM supports engineered fire protection systems requiring controlled annunciation and coordinated response.
Key Advantages
- Intelligent, Addressable Signaling Control
Each module has a unique SLC address, allowing the control unit to supervise and identify individual signaling outputs. - Coordinated Notification Response
Supports activation of signaling circuits based on programmed alarm or system logic. - Continuous Panel Communication
Maintains ongoing communication with ARIES™ control units for real-time status monitoring and diagnostics.
- Supervised Circuit Integrity
Designed to support monitored signaling circuits within addressable system architecture. - Seamless System Integration
Fully compatible with SmartOne® addressable detection and suppression systems.

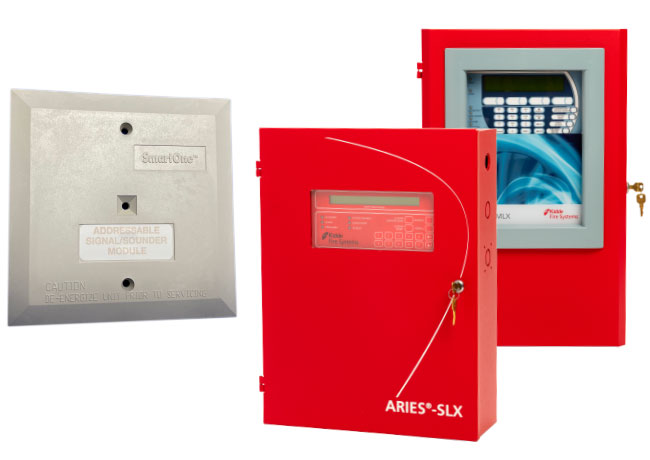

Applications
The SmartOne® Addressable Signal Module is ideal for engineered systems requiring supervised signaling integration, including:
- Auxiliary notification circuits
- Controlled annunciation functions
- System-specific alerting outputs
- Interface to compatible signaling devices
- Engineered detection and suppression applications
System Architecture
SmartOne® System Integration
Compatible Control Units
- ARIES®-SLX Intelligent Single-Loop Control Unit
- ARIES®-MLX Intelligent Multi-Loop Control Unit
System Capabilities
- Individual module addressing on the SmartOne® SLC
- Programmable signaling activation
- Real-time status and trouble reporting
- Centralized configuration and diagnostics through the control panel
- Designed for use within engineered fire protection systems
Installation & System Design
- Connects directly to the SmartOne® Signaling Line Circuit
- Addressing and configuration managed through the control unit
- Designed for flexible placement within engineered system layouts
- Supports scalable system expansion and long-term serviceability
Technical Specifications
| SPECIFICATION | DETAILS |
|---|---|
| Device Type | Addressable signal module |
| Function | Controls supervised signaling circuits |
| Communication | SmartOne® addressable SLC |
| Addressability | Individual module identification |
| Integration | ARIES®-SLX and ARIES®-MLX control units |
| Typical Use | Signaling and annunciation interface |
Compliance & System Standards
- Designed for use within UL-listed KiddeFenwal intelligent control systems
- Intended for installation in systems engineered to comply with NFPA 72 and applicable local codes, when installed per system design and AHJ requirements
Resources
Resource links coming soon!
Intelligent Signaling. Coordinated Response.
The SmartOne® Addressable Signal Module extends addressable system capability—enabling supervised, programmable signaling control within engineered fire protection applications.
