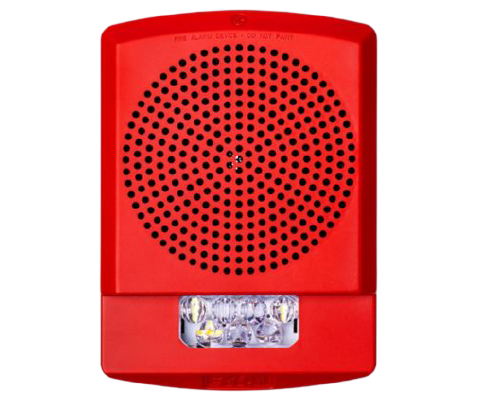

Wheelock® Eluxa High Efficiency Strobe
Energy-Efficient Visual Signaling for Fire and Life Safety Systems
The Wheelock Eluxa High Efficiency Strobe delivers powerful, code-compliant visual notification using advanced LED technology designed to reduce power consumption without sacrificing performance. Engineered for indoor wall and ceiling applications, Eluxa strobes provide reliable signaling while enabling more efficient system design.
As part of the KiddeFenwal portfolio, Eluxa strobes combine industry-leading efficiency, flexible configuration, and modern aesthetics, making them ideal for a wide range of commercial and institutional environments.
Key Advantages
- Advanced LED Technology
Industry-leading low current draw reduces overall system power requirements - Multiple Candela Settings
Six field-selectable candela options for flexible application (15–185 cd wall; up to 177 cd ceiling) - Cost-Efficient System Design
Supports more devices per NAC, reducing power supplies and installation costs
- Low Profile Design
Sleek, compact form factor blends with modern building interiors - Tool-Free Configuration
Easy candela adjustment and installation with pre-wire/pre-test mounting plate - Backward Compatibility
Compatible with existing Wheelock RSS and Exceder LED3 systems

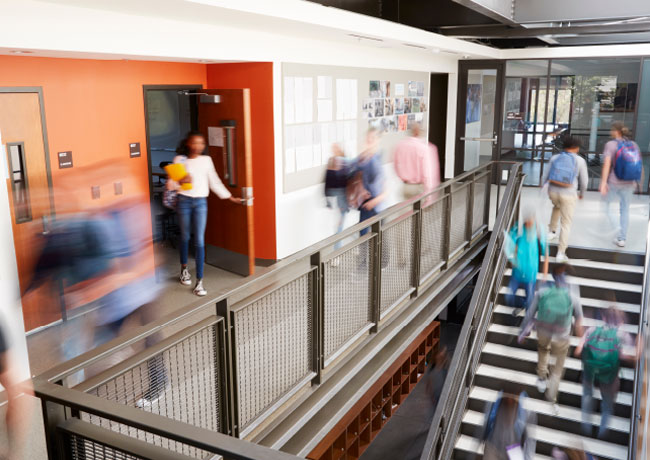

Applications
The Wheelock Eluxa High Efficiency Strobe is ideal for:
- Commercial and institutional fire alarm systems
- Office buildings, schools, and healthcare facilities
- Indoor wall and ceiling notification applications
- Facilities seeking reduced power consumption and installation costs
System Architecture
Construction & Design
Design: Low-profile, modern enclosure for aesthetic integration
Mounting: Wall and ceiling configurations with single-gang compatibility
Lens Options: Clear and amber lens options available
Installation: Pre-wire/pre-test mounting plate with hinged design
Adjustment: Field-selectable candela settings without tools
Technical Specifications
| SPECIFICATION | DETAILS |
|---|---|
| Operating Voltage | 24 VDC |
| Candela Settings (Wall) | 15, 30, 75, 110, 135, 185 cd |
| Candela Settings (Ceiling) | 15, 30, 75, 110, 150, 177 cd |
| Light Source | LED |
| Mounting | Wall or Ceiling |
| Synchronization | Compatible with Wheelock sync protocols |
| Compatibility | RSS, Exceder LED3, and other Wheelock systems |
Compliance & Certifications
- UL 1971, UL 1638, UL 464 Listed
- CAN/ULC-S525 and CAN/ULC-S526 Listed
- NFPA 72 compliant (20 ms light pulse requirement)
- RoHS compliant (no mercury or hazardous substances)
Resources
Efficient Signaling You Can Rely On
Designed for performance and efficiency, the Wheelock Eluxa High Efficiency Strobe delivers powerful visual notification while reducing system costs and complexity, helping ensure reliable life safety signaling when it matters most.
