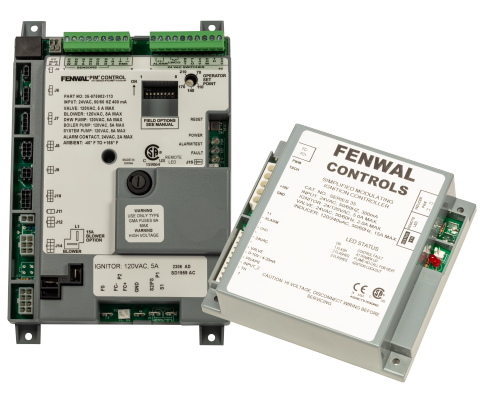

24VAC PIM® Gas Ignition Controls
Modulating Ignition Control for Advanced System Performance
24VAC PIM® (Platform Ignition Module) Gas Ignition Controls provide advanced ignition, flame monitoring, and modulation capabilities for gas-fired systems requiring greater precision and performance. Designed to support dynamic system operation, PIM® controls enable equipment to adjust output based on demand, improving efficiency, responsiveness, and overall system control.
As part of the Fenwal Controls portfolio within the KiddeFenwal family of brands, PIM® ignition solutions combine reliable ignition control with enhanced communication and system intelligence, supporting modern, high-efficiency applications.
The PIM® Advantage

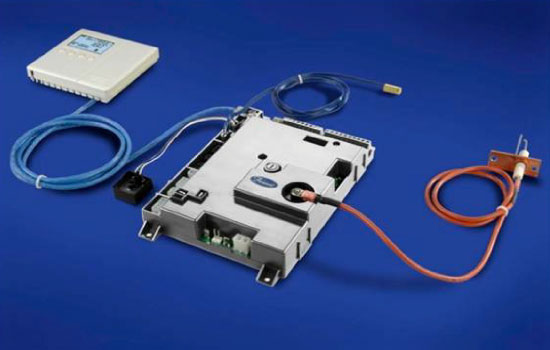

Intelligent Control with Modulating Performance
Unlike traditional ignition controls that operate at a fixed output, PIM® controls support modulating operation, allowing systems to continuously adjust performance levels based on real-time demand. This enables more efficient operation, improved temperature control, and reduced energy consumption.
By integrating ignition control, flame monitoring, and system communication into a single platform, PIM® controls provide a more advanced and adaptable approach to managing gas-fired systems.
Key Advantages
- Modulating Control Capability
Supports variable output operation for improved system efficiency and responsiveness - Integrated Ignition and Flame Monitoring
Manages ignition sequencing while continuously verifying flame presence - Enhanced System Communication
Supports integration with system controls for coordinated performance
- Reliable Safety Shutdown
Interrupts gas flow in the event of ignition failure or flame loss - Advanced Diagnostics
Provides system feedback and troubleshooting support - Flexible System Integration
Designed for use in advanced gas-fired equipment and high-efficiency systems
Applications

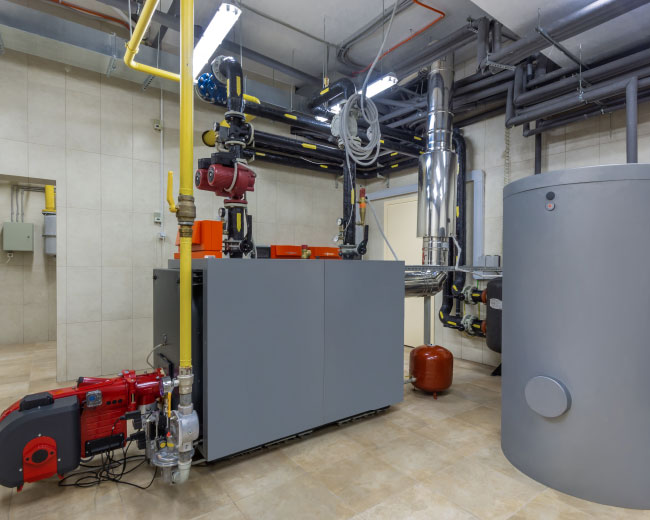

Optimized for High-Efficiency and Advanced Systems
24VAC PIM® Gas Ignition Controls are commonly used in applications requiring precise control and efficient performance, including:
- High-efficiency HVAC systems
- Condensing boilers and furnaces
- Commercial heating equipment
- Advanced gas-fired appliances
- Systems requiring variable output and performance optimization
System Architecture
Available Configurations
Designed for Intelligent System Integration
PIM® ignition controls are available in configurations designed to support different system requirements and communication needs.
Options include:
- Modulating ignition control configurations
- Integration with system control platforms
- Multiple ignition and flame monitoring configurations
- Advanced diagnostic and communication capabilities
Technical Overview
- Input Voltage: 24VAC, 50/60 Hz
- Control Type: Platform Ignition Module (PIM®) with modulating capability
- Ignition Types Supported: Direct Spark Ignition (DSI) and system-dependent configurations
- Control Function: Manages ignition, flame detection, modulation, and system communication
- Flame Sensing: Flame rectification with continuous monitoring
- Safety Features: Lockout on ignition failure, flame loss response, and system fault detection
- Diagnostics & Communication: Integrated system communication and diagnostic feedback
- Integration: Designed for advanced, high-efficiency gas-fired systems
Resources
Resource links coming soon!
Advanced Control Starts Here
Fenwal Controls has a long-standing reputation for delivering reliable ignition control solutions across a wide range of applications. As part of KiddeFenwal, PIM® Gas Ignition Controls represent the next evolution of ignition technology, combining performance, intelligence, and reliability to support modern system demands.
Connect with our team to find the right solution for your application.
