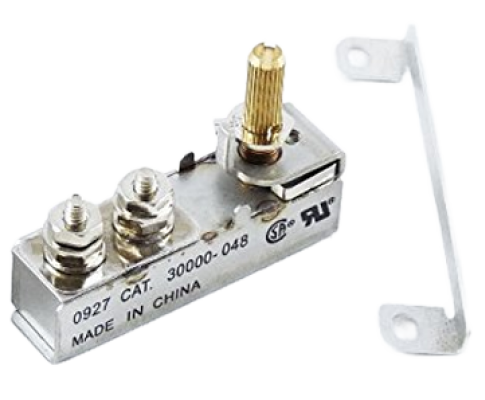

Surface Mount THERMOSWITCH™
Direct, Responsive Temperature Control at the Point of Contact
Surface Mount THERMOSWITCH™ controllers provide fast, accurate temperature sensing and control through direct contact with heated surfaces. Designed for applications where immediate thermal response is critical, these compact mechanical devices deliver reliable performance without the need for complex electronics or external control systems.
As part of the Fenwal Controls portfolio within the KiddeFenwal family of brands, Surface Mount THERMOSWITCH™ solutions are built for durability, precision, and long-term reliability across industrial and commercial environments.

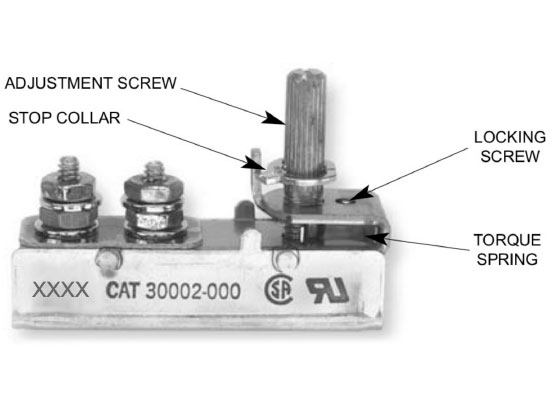

The Surface Mount THERMOSWITCH™ Advantage
Immediate Response Through Direct Surface Sensing
Surface Mount THERMOSWITCH™ controllers operate using differential thermal expansion, sensing temperature changes directly at the source. Because the device is mounted in direct contact with the heated surface, it responds almost instantaneously to temperature fluctuations, enabling precise control and protection.
This direct sensing capability makes Surface Mount THERMOSWITCH™ ideal for applications where temperature must be monitored and controlled at the exact point of heat generation.
Key Advantages
- Direct Surface Contact Sensing
Detects temperature changes at the source for immediate response - Fast, Accurate Thermal Actuation
Provides precise opening or closing of contacts based on temperature conditions - Adjustable Temperature Settings
Field-adjustable configurations allow fine-tuning to application requirements
- Compact, Low-Profile Design
Ideal for space-constrained equipment and tight installation environments - Durable Construction
Stainless steel components support long-term performance in demanding conditions - Reliable Mechanical Operation
Operates without external power or complex control systems
Applications

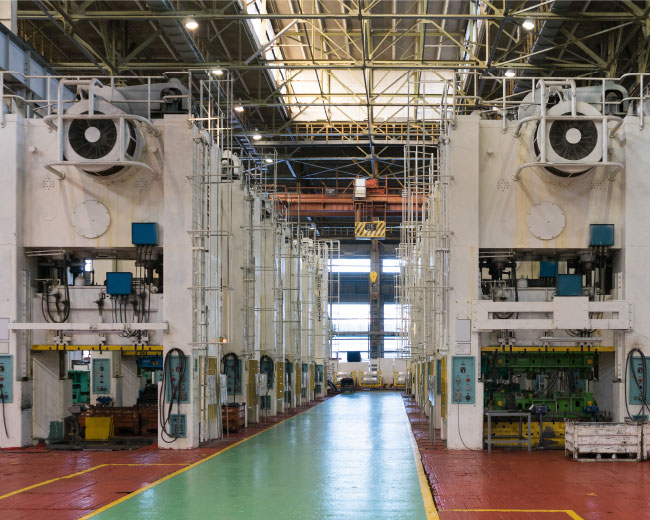

Localized Temperature Control for Equipment and Systems
Surface Mount THERMOSWITCH™ controllers are commonly used in applications where direct surface temperature monitoring is required, including:
- Food warming equipment and commercial appliances
- Industrial presses and laminating equipment
- Packaging and processing machinery
- Pressure washers and heating systems
- Specialty equipment requiring localized thermal control
- Platens
- Vending machines
- Popcorn machines
- Hot Stamp
- Food warming trays
System Architecture
Available Configurations
Designed for Flexible Installation and Performance
Surface Mount THERMOSWITCH™ controllers are available in multiple configurations to support a range of temperature ranges, mounting requirements, and application needs.
Options include:
- Multiple temperature ranges and calibration settings
- Adjustable screw lengths and mounting configurations
- Factory preset temperature options
- Optional mounting brackets for installation flexibility
Technical Overview
- Temperature Range: Approximately 50°F to 600°F depending on model configuration
- Contact Operation: Opens on temperature rise (typical), with configurable operation based on application
- Electrical Ratings: Up to 120 VAC / 240 VAC for resistive loads (varies by model)
- Sensing Method: Differential thermal expansion with direct surface contact for rapid response
- Construction: Stainless steel case with internal bridge assembly and aluminum mounting components
- Adjustment: Field-adjustable temperature settings available; factory preset options available
- Mounting: Surface-mounted using clamp or bracket configurations
Resources
Resource links coming soon!
Control Temperature with Confidence
Fenwal Controls has a long-standing reputation for engineering dependable thermal solutions that perform in demanding environments. As part of KiddeFenwal, Surface Mount THERMOSWITCH™ products are designed to deliver consistent, repeatable performance for equipment protection and temperature control applications.
Connect with our team to find the right configuration for your application.
