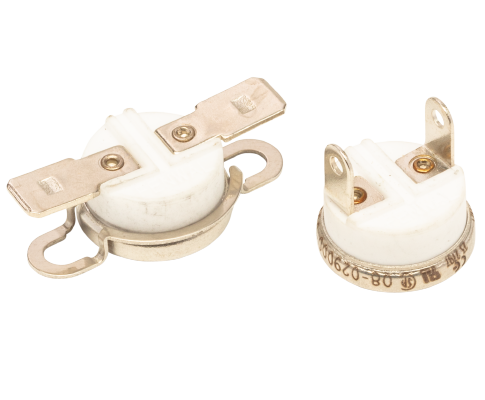

Snap Disc Controls
Reliable, Snap-Action Temperature Control for Equipment Protection
Snap Disc Controls provide dependable, repeatable temperature control using a proven bi-metal snap-action mechanism. Designed for applications requiring precise actuation at defined temperature thresholds, these compact mechanical devices deliver consistent performance across a wide range of equipment and systems.
As part of the Fenwal Controls portfolio within the KiddeFenwal family of brands, Snap Disc Controls are engineered for durability, simplicity, and long-term reliability in industrial and commercial environments.
The Snap Disc Advantage

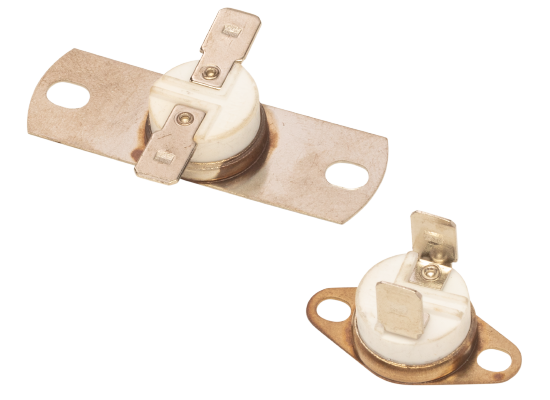

Fast, Repeatable Actuation at Critical Temperatures
Snap Disc Controls operate using a bi-metal disc that responds to temperature changes by “snapping” at a calibrated set point. This rapid, decisive action ensures reliable opening or closing of electrical contacts, helping protect equipment and maintain safe operating conditions.
This snap-action response minimizes contact wear and ensures consistent performance over time, making these devices ideal for applications requiring dependable temperature limiting or control.
Key Advantages
- Snap-Action Performance
Bi-metal disc delivers fast, precise actuation at defined temperature thresholds - Repeatable Operation
Designed for consistent cycling and long-term reliability - Compact Design
Small form factor supports wide range of applications
- Flexible Contact Configurations
Available in normally open or normally closed configurations - Durable Construction
Built to withstand demanding operating environments - Low Maintenance Operation
Mechanical design reduces complexity and service requirements
Applications

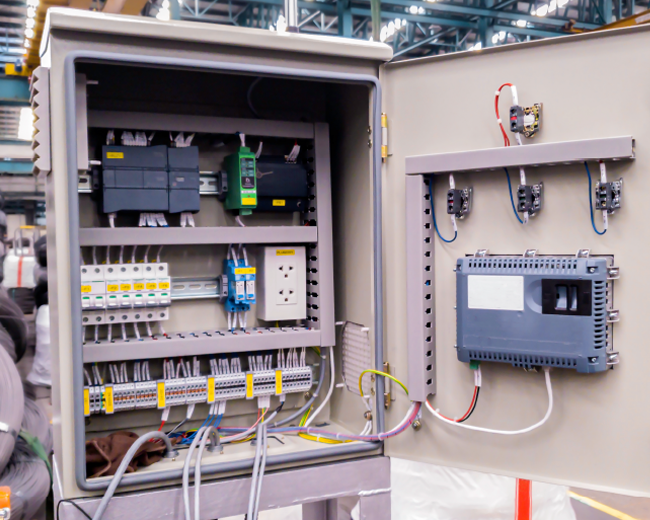

Temperature Limiting and Control Across Equipment
Snap Disc Controls are widely used in applications where reliable temperature monitoring and limiting are essential, including:
- Commercial and residential appliances
- HVAC systems and heating equipment
- Industrial machinery and processing systems
- Electrical enclosures and equipment housings
- Food service and warming equipment
System Architecture
Available Configurations
Designed for Versatility Across Applications
Snap Disc Controls are available in a range of configurations to meet different application requirements and operating conditions.
Options include:
- Multiple temperature set points (fixed or adjustable depending on model)
- Normally open or normally closed contact configurations
- Automatic reset or manual reset options
- Surface-mounted designs for direct equipment integration
- Variations in electrical ratings and terminal configurations
Technical Overview
- Detection Type: Bi-metal snap-action temperature control
- Temperature Range: Wide range of preset temperature ratings depending on model
- Contact Operation: Opens or closes on temperature rise or fall based on configuration
- Electrical Ratings: Suitable for low- to moderate-power control applications (varies by model)
- Sensing Method: Bi-metal disc calibrated to snap at a specific temperature threshold
- Construction: Compact housing designed for durability and direct mounting
- Mounting: Surface-mounted configurations for localized temperature sensing
Resources
Resource links coming soon!
Reliable Temperature Control Starts Here
Fenwal Controls has decades of experience delivering dependable thermal control solutions across a wide range of industries. As part of KiddeFenwal, Snap Disc Controls are engineered to provide consistent, reliable performance in applications where equipment protection and temperature control are critical.
Connect with our team to find the right configuration for your application.
