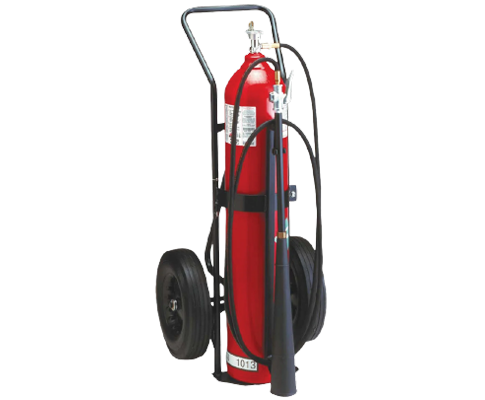

Badger Wheeled Carbon Dioxide (CO₂) Extinguishers
High-Capacity, Clean Fire Protection for Industrial Applications
Badger Wheeled Carbon Dioxide (CO₂) Fire Extinguishers provide high-capacity, clean fire suppression for Class B and C hazards in industrial and commercial environments. Designed for mobility and ease of use, these extinguishers enable a single operator to respond quickly to larger or more complex fire risks.
Using carbon dioxide as the extinguishing agent, these systems deliver effective fire suppression without leaving residue, making them ideal for protecting sensitive equipment and processes.
Part of the Badger Fire portfolio within KiddeFenwal, wheeled CO₂ extinguishers combine high performance, durability, and ease of operation for demanding applications.
Key Advantages
- Clean, Residue-Free Suppression
CO₂ extinguishing agent leaves no residue, reducing cleanup and protecting sensitive equipment - High-Capacity Fire Protection
Available in large-capacity wheeled configurations for extended discharge and increased coverage - Designed for Single-Operator Use
Engineered for mobility and ease of maneuvering during emergency response
- Effective for Class B & C Fires
Suitable for flammable liquids and energized electrical equipment - Durable Industrial Construction
Steel cylinders and heavy-duty components support long-term performance - Extended Reach and Discharge Time
Provides longer discharge durations compared to handheld units
Fire Classes Protected
Badger Wheeled CO₂ extinguishers are designed for:
Class B
Flammable Liquids and Gases
Class C
Energized Electrical Equipment
These extinguishers are ideal for environments where clean suppression is required and residue must be avoided.
Applications
Badger Wheeled CO₂ extinguishers are commonly used in environments where larger fire risks and sensitive equipment are present, including:
- Industrial facilities
- Manufacturing plants
- Power generation environments
- Laboratories and technical facilities
- Areas with sensitive electrical or electronic equipment
These extinguishers are especially valuable in applications where traditional agents could cause damage or require extensive cleanup.
System Architecture
Product Features
The Badger Wheeled CO₂ extinguisher line is engineered to provide reliable suppression performance and ease of operation.
Key design features include:
- Carbon dioxide self-expelling suppression system
- Heavy-duty hand wheel cylinder activation valve
- 16-inch semi-pneumatic rubber wheels for mobility
- Heavy-duty industrial discharge valve and nozzle
- Quick-release discharge nozzle retainer
- Steel cylinder construction
- Six-year limited warranty
Models include:
- CD50-2 (50 lb capacity)

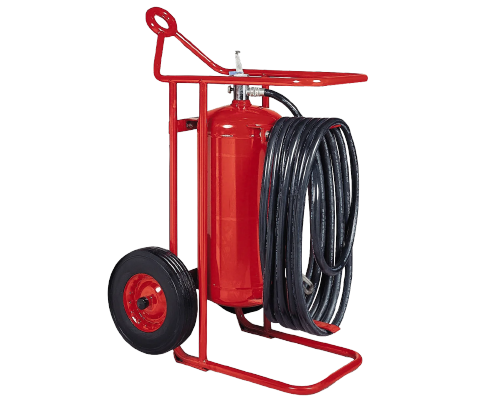

- 150MB: 125lb ABC
Performance & Operating Characteristics
Badger Wheeled CO₂ extinguishers are designed for effective suppression and consistent performance in industrial environments.
Key operating characteristics include:
- Carbon dioxide (CO₂) as both extinguishing agent and expellant
- Operating pressure of approximately 850 psi at 70°F
- Discharge range of approximately 10–15 feet, depending on model
- Discharge time of approximately 30–60 seconds, depending on model
- Operating temperature range from -22°F to 120°F
These characteristics support effective fire suppression for larger hazards requiring extended discharge capability.
Listings & Compliance
Badger Wheeled CO₂ extinguishers are designed to meet applicable fire protection standards.
Applicable approvals include:
- UL Listed (20-B:C fire rating)
- Meets Department of Transportation (DOT) requirements
- U.S. Coast Guard (USCG) approval on applicable models
These extinguishers support compliance with fire protection requirements in industrial and commercial environments.
High-Capacity Fire Protection When It Matters Most
For larger fire risks and sensitive environments, wheeled CO₂ extinguishers provide the capacity, mobility, and clean suppression needed for effective response. Badger Wheeled CO₂ extinguishers deliver dependable performance in applications where both power and precision are critical.
To learn more about selecting the right extinguisher for your facility, contact an authorized KiddeFenwal distributor.
