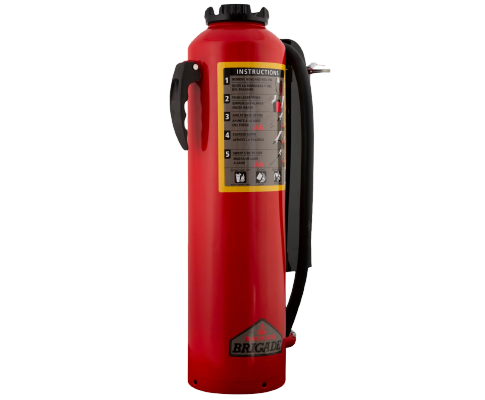

Badger Brigade Carbon Dioxide Expellant Cartridge Extinguishers
High-Performance Fire Protection for Industrial and High-Hazard Applications
The Badger Brigade Carbon Dioxide Expellant Cartridge Operated Fire Extinguishers are designed for high-hazard environments where rapid response, reliable performance, and rugged durability are essential. Engineered for demanding industrial applications, these extinguishers deliver powerful fire suppression using a cartridge-operated system that enables consistent discharge performance and field serviceability.
Unlike stored-pressure extinguishers, Brigade models use a CO₂ cartridge as an expellant to discharge dry chemical agent, providing enhanced reliability, consistent pressure, and the ability to recharge units quickly in the field.
Part of the Badger Fire portfolio within KiddeFenwal, Brigade extinguishers are built to withstand harsh environments while delivering dependable protection across a wide range of industrial fire risks.
Key Advantages
- High-Hazard Fire Protection
Designed for demanding environments such as oil and gas, chemical processing, mining, aviation, and power generation - Cartridge-Operated Design
Uses a CO₂ expellant cartridge to deliver consistent discharge performance and support in-field recharging - Versatile Dry Chemical Agents
Available with ABC multipurpose, BC regular, or Purple K agents to address a wide range of fire hazards - Field Rechargeable
Enables faster turnaround and reduced downtime in critical applications
- Durable Industrial Construction
Steel cylinders with full 360° welds and corrosion-resistant components support long-term performance - User-Focused Design
Swivel discharge nozzle supports both left- and right-handed operation for improved usability - Extended Service Life
Built for rugged use with a 12-year limited warranty
Fire Classes Protected
Badger Brigade extinguishers are designed to address multiple fire hazards depending on agent selection:
Class A
Ordinary Combustibles (ABC models)
Class B
Flammable Liquids and Gases
Class C
Energized Electrical Equipment
These extinguishers are engineered to provide flexible protection across complex industrial hazard environments.

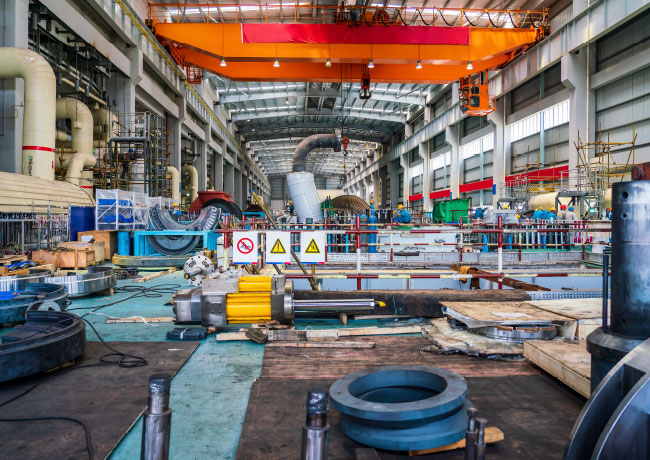

Applications
Badger Brigade extinguishers are commonly used in high-risk industrial environments, including:
- Oil and gas facilities
- Chemical processing plants
- Mining operations
- Power generation facilities
- Aviation and transportation environments
These applications require durable, high-performance extinguishers capable of rapid response and reliable operation under demanding conditions.
System Architecture
Product Features
The Badger Brigade line is engineered to deliver dependable suppression performance while supporting ease of operation and maintenance.
Key design features include:
- Cartridge-operated dry chemical suppression system
- CO₂ expellant cartridge with hex weight marking for identification
- Steel cylinder construction with industrial-grade durability
- Stainless steel cartridge guard and ring pins
- Swivel discharge nozzle for directional control
- Dual-language instruction nameplates
- Offset fill cap for easier servicing and maintenance
Models are available in 10 lb, 20 lb, and 30 lb configurations, with multiple flow rate options and fire ratings depending on the selected model.
Performance & Operating Characteristics
Badger Brigade extinguishers are designed to deliver high-performance fire suppression in demanding environments.
Key operating characteristics include:
- Cartridge-operated system using CO₂ expellant
- Discharge ranges typically between 15–35 feet, depending on model
- Discharge times ranging from approximately 15–35 seconds based on configuration
- High flow rate options available for rapid agent application
- Consistent discharge performance independent of stored internal pressure
These characteristics support effective suppression in high-hazard scenarios where performance and reliability are critical.
Listings & Compliance
Badger Brigade extinguishers are designed to meet applicable fire protection standards.
Applicable approvals include:
- UL Listed fire ratings (vary by model)
- U.S. Coast Guard (USCG) approval on applicable models
These extinguishers support compliance with fire protection requirements in industrial and marine environments.
Resources
Resource links coming soon!
High-Performance Protection for Demanding Environments
In high-hazard industrial settings, fire protection equipment must perform reliably under pressure. Badger Brigade cartridge-operated extinguishers provide the durability, flexibility, and performance needed to respond quickly and effectively when it matters most.
To learn more about selecting the right extinguisher for your application, contact an authorized KiddeFenwal distributor.
